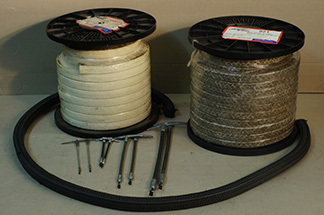

Mechanical Packing
We stock all the sizes and styles of the most often used AMERICAN BRAIDING mechanical packings for pump and valve service repair. AMERICAN MADE
PRICES: PER POUND
Style 8000T 100% GFO® Fibre
Temp: 550°F 287°C pH:0-14 | 100% GFO® Fibre- Branded
| Size | 1/8"Sq. | 3/16"Sq. | 1/4"Sq. | 5/16"Sq. | 3/8"1/2"5/8"3/4"7/8"1 |
|---|---|---|---|---|---|
| 1-lb. spool | 140.68 |
133.86 |
124.20 |
119.16 |
112.58 |
| 5-lb. spool | 137.06 |
130.20 |
120.58 |
115.52 |
108.48 |
| 10-lb.& Up | 136.58 |
129.28 |
120.12 |
115.20 |
108.48 |
| Aprox. Ft/lb. | 70 |
37 |
21 |
14 |
10|5.5|3.6|2.6|1.9|1.5 |
Style 3000G Graphite Acrylic
Temp:500°F 260°C pH: 4-10 | Acrylic Yarn Impregnated w/lubricants- Graphite Coated .......Mfg.Data Sheet
| Size | 1/8"Sq. | 3/16"Sq. | 1/4"Sq. | 5/16"Sq. | 3/8"1/2"5/8"3/4"7/8"1" |
|---|---|---|---|---|---|
| 1-lb. spool | 43.08 |
39.38 |
34.48 |
30.12 |
29.00 |
| 5-lb. spool | 39.94 |
36.22 |
31.38 |
27.68 |
26.00 |
| 10-lb.& Up | 39.58 |
35.86 |
31.00 |
26.60 |
25.00 |
| Approx.Ft/lb. | 120 |
53.3 |
39 |
23 |
14|9|5.6|4.6|3.1|2.4 |
STYLE 3000T TEFLON ACRYLIC
Temp:500°F 260°C pH: 0-12 | Acrylic Yarn Impregnated w/PTFE and lubricant.................Mfg.Data Sheet
| Size | 1/8"Sq. | 3/16"Sq. | 1/4"Sq. | 5/16"Sq. | 3/8"1/2"5/8"3/4"7/8"1" |
|---|---|---|---|---|---|
| 1-lb. spool | 53.62 |
49.30 |
47.14 |
45.30 |
41.50 |
| 5-lb.spool | 50.62 |
45.88 |
43.78 |
41.88 |
38.50 |
| 10-lb.& Up | 49.78 |
45.52 |
43.46 |
41.54 |
37.75 |
| Approx.Ft/lb. | 88 |
41 |
28 |
16.4 |
11.3|6.5|4.4|3.2|2.4|1.8 |
STYLE 921 FLAX
Temp:220°F 104°C pH 5-9...............Mfg.Data Sheet ....MSDS
| Size | 1/8"Sq. | 3/16"Sq. | 1/4"Sq. | 5/16"Sq. | 3/8"1/2"5/8"3/4"7/8"1" |
|---|---|---|---|---|---|
| 1-lb. spool | 24.50 |
22.70 |
21.96 |
20.96 |
18.00 |
| 5-lb.spool | 21.46 |
19.58 |
18.88 |
17.86 |
16.00 |
| 10-lb.& Up | 21.10 |
19.20 |
18.60 |
17.56 |
15.00 |
| Approx.Ft/lb. | 94 |
50 |
32 |
18 |
13.7|9|5|3.7|3|2.1 |
Style 921 Flax Stocked in 25# spools in sizes 1/2" thru 1-1/4"
